Leucine-rich repeat kinase 2 (or LRRK2) is a large, multi function protein that is associated with Parkinson’s. People with genetic variations in the region of DNA that provides the instructions for making LRRK2 protein have a higher risk of developing the condition.
In many cases of Parkinson’s, LRRK2 can become hyperactive. Researchers and biotech companies have been striving to identify drug-like molecules that can dampen down this hyperactivity in the hope of slowing down the progression of Parkinson’s.
One of the leading biotech firms in this area of research is Denali Therapeutics, and recently the company has provided some updates on their progress.
In today’s post, we will discuss what LRRK2 is, we will look at what Denali have achieved thus far, and we will review what the company has recently announced.
# # # #
A presentation was given at the UBS 2021 Global Healthcare Virtual Conference this week by representatives from Denali Therapeutics.
The slide deck (which can be found here on the company’s website) touched on multiple lines of active research for the company, including their active clinical trial programs:
- DNL310 (ETV:iduronate-2-sulfatase (IDS) for Hunter syndrome), which has expanded testing in Phase 1/2 based on positive interim data
- DNL343 (EIF2B activator indicated for ALS), which has had positive interim Phase 1 data, and the company is planning a Phase 1b study in ALS (Click here to read a recent SoPD post on EIF2B activation)
- DNL788 (RIPK1 inhibitor targeted at ALS, Alzheimer’s, & Multiple Sclerosis … I’m really curious, why not PD?!?), which is in ongoing Phase 1 studies in healthy volunteers (in collaboration with Sanofi)
- DNL758 (aka SAR443122; another RIPK1 inhibitor targeted at inflammation), currently recruiting participants for a Phase 2 study of lupus & in Phase 1 for COVID-19 lung disease (again in collaboration with Sanofi)
But of particular interest to us here at SoPD HQ were the slides on their LRRK2 inhibitor clinical trial data.
Founded in 2013 by a group of former Genentech executives, San Francisco-based Denali Therapeutics is a biotech company which is focused on developing novel therapies for people suffering from neurodegenerative diseases.
Ex-Genentechers. Source: Medicalstartups
Although they have product development programs for other condition (such as Amyotrophic Lateral Sclerosis and Alzheimer’s disease), Parkinson’s is definitely one of their primary indications of interest.
The company has been leading the charge in the development of LRRK2 inhibitors as a potential therapeutic class for Parkinson’s and they have recently made some big announcements.
What are LRRK2 inhibitors?
Leucine-rich repeat kinase 2 (or LRRK2 – pronounced ‘lark 2’) – also known as ‘Dardarin‘ (from the Basque word “dardara” which means “trembling”) – is an enzyme that has many functions within a cell – from supporting efforts to move things around inside the cell to helping to keep the power on (involved with mitochondrial function).
The many jobs of LRRK2. Source: Researchgate
The LRRK2 gene – the section of DNA that provides the instructions for making LRRK2 protein – is made up of many different regions. Each of those regions is involved with the different functions of the eventual protein. As you can see in the image below, the regions of the LRRK2 gene have a variety of different functions:
The regions and associated functions of the LRRK2 gene. Source: Intechopen
Tiny genetic errors or variations within the LRRK2 gene are recognised as being some of the most common genetic risk factor for Parkinson’s, with regards to increasing ones chances of developing the condition (LRRK2 variants are present in approximately 1-2% of all cases of Parkinson’s).
The structure of Lrrk2 and where various mutations lie. Source: Intech
As the image above suggests, mutations in the PARK8 gene are also associated with Crohn’s disease (Click here and here for more on this) – though that mutation is in a different location to those associated with Parkinson’s. And one particularly common Parkinson’s-associated LRRK2 mutation – called G2019S – is also associated with increased risk of certain types of cancer, especially for hormone-related cancer and breast cancer in women – Click here to read more about this. If you have a G2019S mutation, no reason to panic – but it is good to be aware of this association and have regular check ups.
The G2019S variation (the name designates its location on the gene) is the most common LRRK2 mutations. In certain populations of people it can be found in 40% of people with Parkinson’s (Click here to read more about this).
What is the effect of having the G2019S variation?
If you look at the image above, you will see that this genetic variation sits within the kinase region of the LRRK2 gene.
What does the kinase region do?
A kinase is an enzyme that regulates the biological activity of other proteins. So LRRK2 can regulate the activity of other proteins.
Kinases function by transferring phosphate groups from high-energy, phosphate-donating molecules (like ATP) to specific target proteins – in a process called phosphorylation.
Wait. What does any of that mean? What does phos…phory…late mean?
Phosphorylation of a protein is basically the process of turning it on or off – making it useful or inactivating it. From allowing a protein to fold in a particular manner to actually activating/deactivating the function of a protein, phosphorylation is a critical function in cellular biology.
Phosphorylation of a kinase protein. Source: Nature
Phosphorylation occurs via the addition or removal of phosphates. Their addition or removal determines the state of the protein being phosphorylated.
So the kinase region of LRRK2 is important for turning on or turning off other proteins?
In a nut shell, yes.
And am I correct if I assume that the G2019S mutation stops this kinase activity?
No, that would be incorrect.
Rather, quite the opposite.
In the mid 2000s, researchers reported that the G2019S mutation actually increases the kinase activity of LRRK2:
Title: Parkinson’s disease-associated mutations in leucine-rich repeat kinase 2 augment kinase activity.
Authors: West AB, Moore DJ, Biskup S, Bugayenko A, Smith WW, Ross CA, Dawson VL, Dawson TM.
Journal: Proc Natl Acad Sci U S A. 2005 Nov 15;102(46):16842-7.
PMID: 16269541 (This report is OPEN ACCESS if you would like to read it)
In this study, the researchers discovered that the G2019S variation did not have any obvious effect on LRRK2 protein levels or localization within cells. But it did cause an increase in the phosphorylation and the autophosphorylation activity of LRRK2.
LRRK2 can phosphorylate itself. It can regulate its own activity.
Ok. Got it.
This finding led the investigators to conclude that the G2019S variation may result in a ‘gain-of-function’ mechanism that could be influential in the pathology of LRRK2-associated Parkinson’s.
Does this increase in LRRK2 activity occur with any other genetic risk factors for Parkinson’s?
Increased LRRK2 kinase activity has also been reported to be induced by variations in another Parkinson’s-associated genetic risk factor: VPS35

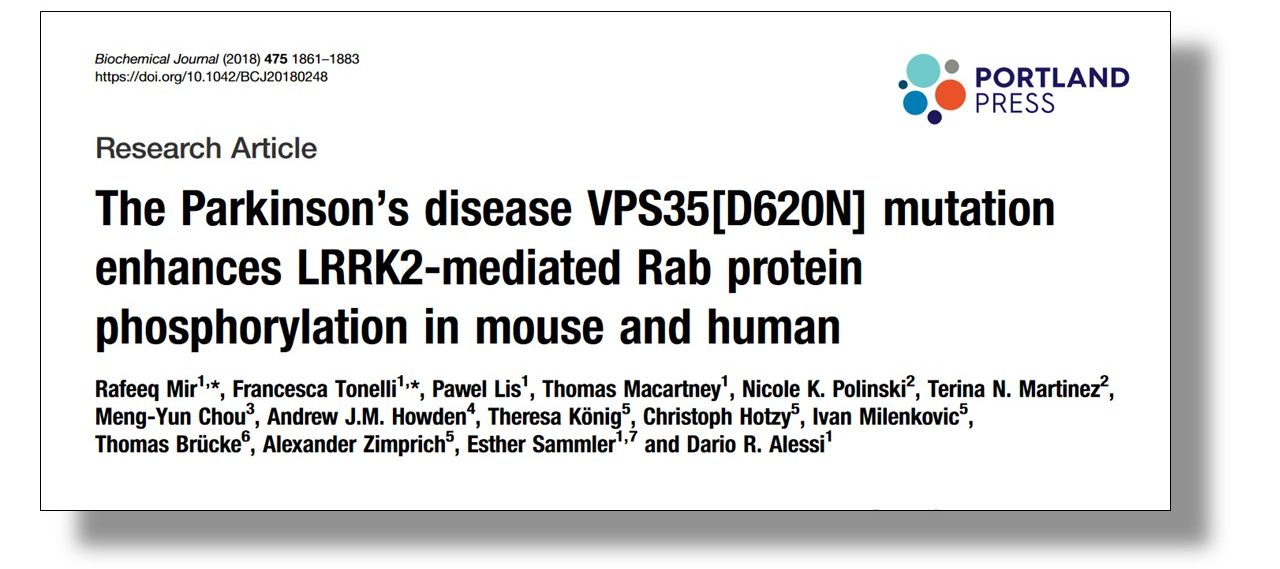

Title: The Parkinson’s disease VPS35[D620N] mutation enhances LRRK2-mediated Rab protein phosphorylation in mouse and human.
Authors: Mir R, Tonelli F, Lis P, Macartney T, Polinski NK, Martinez TN, Chou MY, Howden AJM, König T, Hotzy C, Milenkovic I, Brücke T, Zimprich A, Sammler E, Alessi DR.
Journal: Biochem J. 2018 Jun 6;475(11):1861-1883.
PMID: 29743203 (This report is OPEN ACCESS if you would like to read it)
In this study, the researchers found robustly elevated the phosphorylation of LRRK2 target proteins (Rab8A, Rab10, and Rab12 – more on Rabs below) in mouse and human cells with the Parkinson’s-associated VPS35 variant grown in culture.
And VPS35 is not the only PD-associated variant that increases LRRK2 activity:

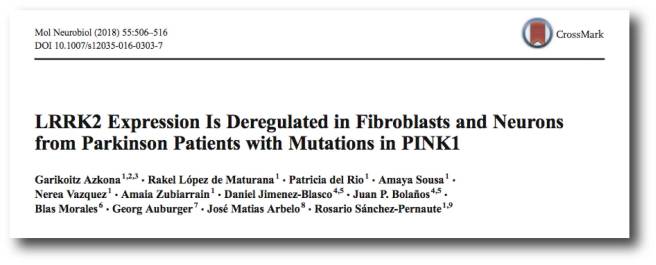

Title: LRRK2 Expression Is Deregulated in Fibroblasts and Neurons from Parkinson Patients with Mutations in PINK1
Authors: Azkona G, López de Maturana R, Del Rio P, Sousa A, Vazquez N, Zubiarrain A, Jimenez-Blasco D, Bolaños JP, Morales B, Auburger G, Arbelo JM, Sánchez-Pernaute R.
Journal: Mol Neurobiol. 2018 Jan;55(1):506-516.
PMID: 27975167 (This report is OPEN ACCESS if you would like to read it)
In this study, the researchers the researchers were interested in another gene that is associated with Parkinson’s – called PTEN-induced putative kinase 1 (or simply PINK1). PINK1 is a protein that has a number of different functions in cells, but it is best understood in the context of cellular waste disposal (Click here to read a recent post that explains what PINK1 does).
In their study, the researchers increased levels of PINK1 in cells and they noticed something interesting about LRRK2:
As levels of PINK1 increased, levels of LRRK2 activity decreased
And when they lowered PINK1 levels in cells, guess what happened: LRRK2 levels of activity went up!
This finding suggests that people with PINK1 mutations who have Parkinson’s may have increased levels of LRRK2.
Interesting. What about people with spontaneous PD? People with PD who have no genetic risk factor. Do they have increased levels of LRRK2?
Data has been published which indicates that some people with idiopathic (or spontaneous) Parkinson’s do have increased levels of LRRK2 activity.
This report was published in 2018:
Title: LRRK2 activation in idiopathic Parkinson’s disease
Authors: Di Maio R, Hoffman EK, Rocha EM, Keeney MT, Sanders LH, De Miranda BR, Zharikov A, Van Laar A, Stepan AF, Lanz TA, Kofler JK, Burton EA, Alessi DR, Hastings TG, Greenamyre JT
Journal: Science Translational Medicine 25 Jul 2018: 10 (451), eaar5429.
PMID: 30045977 (This report is OPEN ACCESS if you would like to read it)
In this study, the researchers reported that many cases of idiopathic Parkinson’s showed about a 4-6 fold increase in markers of LRRK2 activity (compared with the control brains). This result suggested to the researchers that normal (un-mutated) LRRK2 protein may be highly activated in Parkinson’s.
So going back to your original question – this is why biotech companies like Denali are developing inhibitors of LRRK2 activity.
LRRK2 protein. Source: Youtube
RECAP #1: LRRK2 is a protein that functions as a kinase – an enzyme that regulates the biological activity of other proteins
Genetic variations in the LRRK2 gene can result in a hyperactive version of the protein. There is also data indicating that people with spontaneous PD have elevated levels of LRRK2 activity. Biotech companies are developing inhibitors of LRRK2 as potential disease modifying treatments for PD.
Ok, so what were the results of the Denali Phase I studies?
At the International Association of Parkinsonism and Related Disorders Virtual Congress, which was held virtually between May 1st-4th, Dr Danna Jennings (Senior Medical Director at Denali) gave a poster presentation on some of the Phase I clinical work that Denali has conducted on one of their LRRK2 inhibitors.
This was abstract of the presentation:

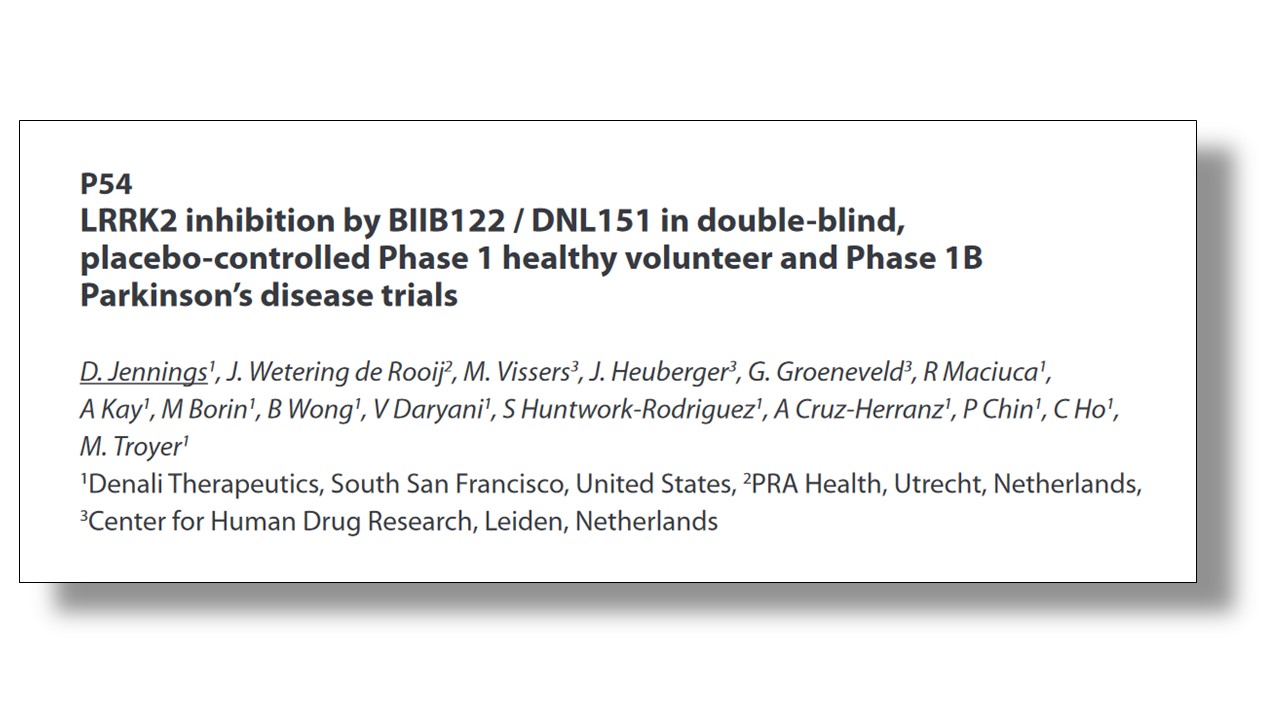

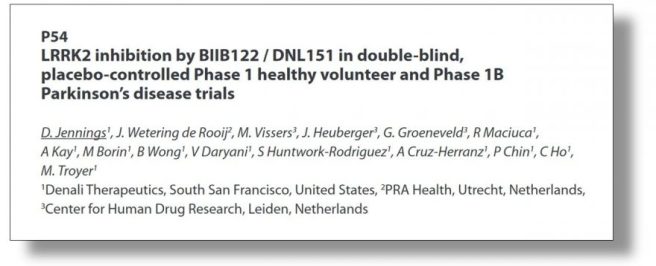

Title: LRRK2 inhibition by BIIB122/DNL151 in double-blind, placebo-controlled Phase 1 healthy volunteer and Phase 1B Parkinson’s disease trials
Authors: Jennings D, Wetering de Rooij J, Vissers M, Heuberger J, Groeneveld G, Maciuca R, Kay A, Borin M, Wong B, Daryani V, Huntwork-Rodriguez S, Cruz-Herranz A, Chin P, Ho C, Troyer M
Poster: P54 (The abstract for this poster is available here)
The poster presented data from two clinical trials. Both studies were Phase I investigations evaluating the safety, tolerability, pharmacokinetics, and pharmacodynamics of Denali’s LRRK2 inhibitor, DNL151 (also now known as BIIB122).

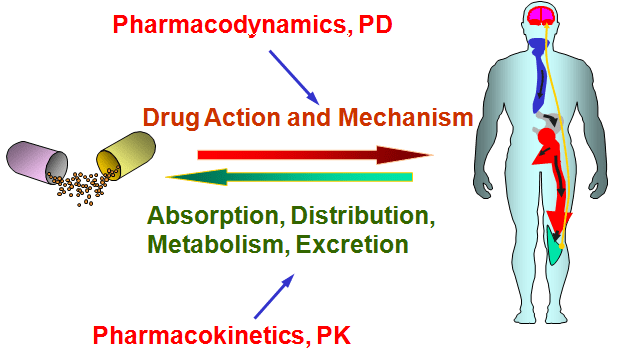

What is pharmacokinetics and pharmacodynamics?
In clinical trials, researchers are interested in investigating the pharmacodynamics and pharmacokinetics of a treatment.
Pharmacodynamics explores how a drug affects an organism (eg. mechanism of action) – basically, the researchers is asking what does the drug do to the body?
Pharmacokinetics, on the other hand, looks at how the organism affects the drug (eg. how well is it absorbed and excreted) – basically, the researchers is asking what does the body do to the drug.
The first study (DNLI-C-0001) was a double-blind, placebo-controlled study, assessing single- and multiple ascending doses of DNL151 in healthy volunteers up to 28 days. This study was conducted in the Netherlands, and the single doses ranged from 15 mg to 300 mg for up to 28 days, while the twice daily doses went up to 400 mg for 14 days (Click here to read more about the details of this study).
The second study (DNLI-C-0003) was an international multicenter, double-blind, placebo-controlled, Phase 1b study evaluating 3 different dose levels of DNL151 in people with Parkinson’s over 28 days. The doses in this study were just once daily, up to 300 mg (Click here to read more about the details of this study).
Collectively, the studies involved 184 healthy volunteers (145 administered with DNL151 & 39 with placebo) and 36 people with Parkinson’s (26 administered with DNL151, 10 with placebo), so a lot of data was collected regarding the pharmacokinetics and pharmacodynamics of DNL151.
The results of both studies indicate that DNL151 was safe and generally well tolerated. Only 4 individuals discontinued treatment during the studies. No serious adverse events were observed and the majority of treatment-emergent adverse events reported were mild in nature and resolved after termination of treatment. Importantly, there were no clinically meaningful changes in pulmonary or renal function in either study. Overall, a positive outcome considering that this is a new drug class in humans.
Is safety and tolerability all the assessed in the study?
Phase I trials are usually short assessments of the safety of a treatment, but they can also provide the investigators with an opportunity to explore ‘target engagement’ to determine if the therapy is doing what it is supposed to.

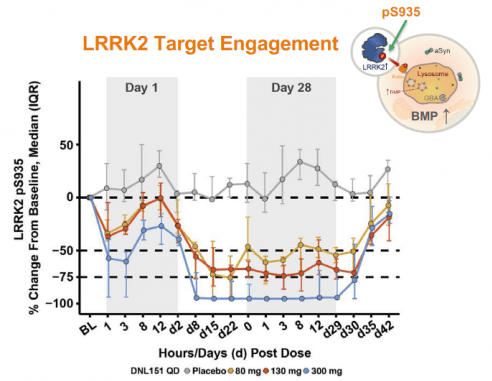

The researchers in these studies also investigated various biomarkers of LRRK2 activity. For example, levels of the phosphorylated form of LRRK2 – known as pS935 LRRK2 – were measured in blood samples, and found to be less than half that observed in the placebo treated group across all of the three doses tested in the Parkinson’s patients (80 mg, 130 mg, and 300 mg given once daily for 28 days):

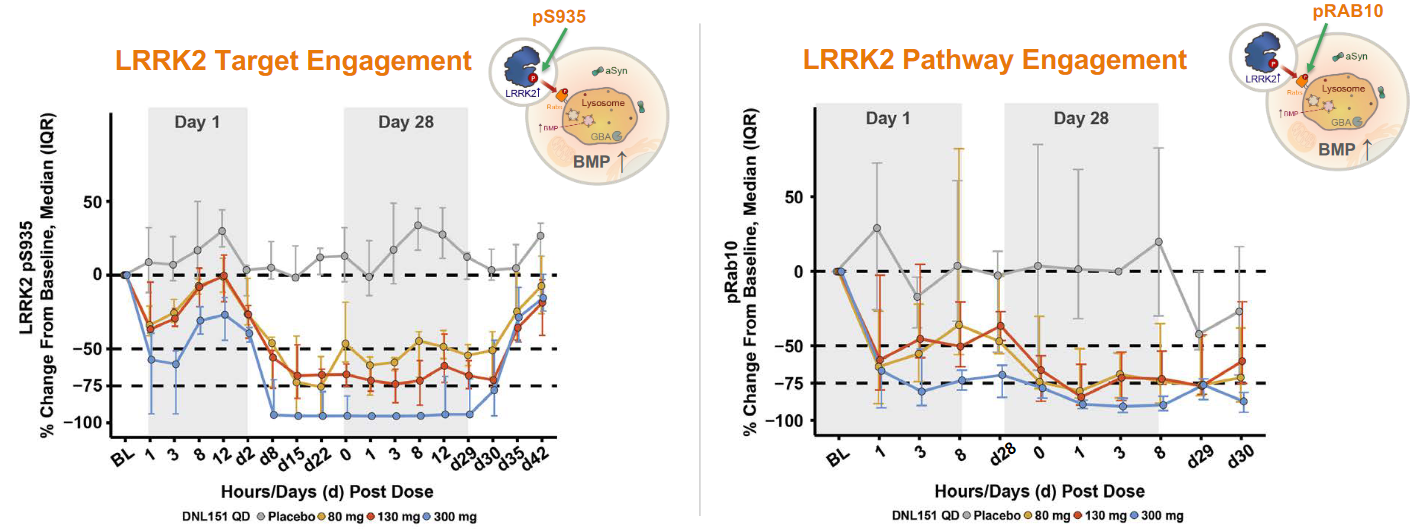

QD means ‘once a day’. Source: Denali
This result suggested that DNL151 could reduce the hyperactivity of LRRK2. And this finding was supported by measures of another biomarker, phosphorylated RAB10 (pRAB10), which was less than half of the levels that were reported in the placebo group across all of the three doses tested in the Parkinson’s patients:

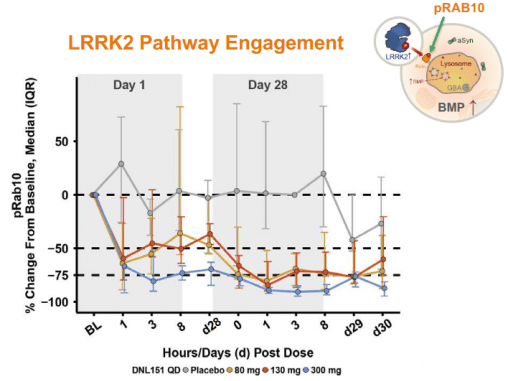

QD means ‘once a day’. Source: Denali
What is phosphorylated Rab10?
RAB proteins are a group of proteins that sit on the inside of cell membranes. There are many types of RAB proteins and each of them has unique subcellular membrane distribution and take part in various functions.
LRRK2 is known to act on RAB proteins, but considerable research has focused on RAB10 in particular, since it was identified as a potential biomarker of LRRK2 activity in 2016:

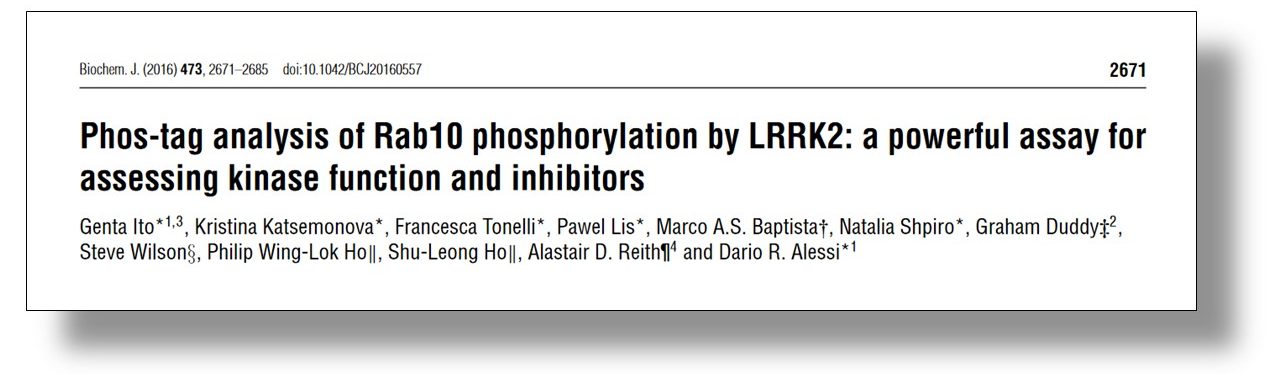

Title: Phos-tag analysis of Rab10 phosphorylation by LRRK2: a powerful assay for assessing kinase function and inhibitors.
Authors: Ito G, Katsemonova K, Tonelli F, Lis P, Baptista MA, Shpiro N, Duddy G, Wilson S, Ho PW, Ho SL, Reith AD, Alessi DR.
Journal: Biochem J. 2016 Sep 1;473(17):2671-85.
PMID: 27474410 (This report is OPEN ACCESS if you would like to read it)
Basically, by phosphorylating RAB10 protein, LRRK2 blocks the ability of it to interact with other proteins, thereby trapping the phosphorylated RAB protein on the membrane and unable to performing its task (RAB10 appears to have important roles in lysosomal function – click here to read more about this). DNL151 treatment reduced levels of phosphorylated RAB10, allowing this protein to function normally.

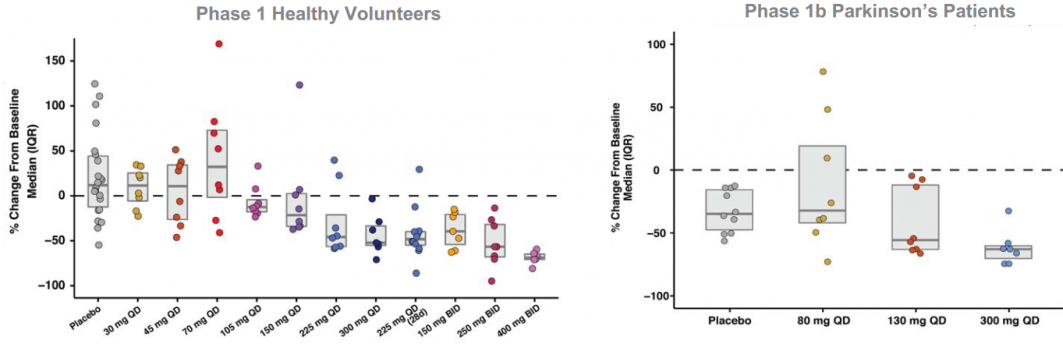

Treatment with DNL151 was also associated with a dose-dependent reduction in di-22:6-BMP, a specific species of bis[monoacylglycerol] phosphate (BMP), which is another marker of lysosomal function (lysosomes are key components of the waste disposal system inside of cells):
This data suggests that not only was DNL151 reducing LRRK2 activity, but this was also having downstream effect on LRRK2 targets in the blood of people with Parkinson’s over the 28 day time frame that the drug was tested. Overall an encouraging result.
One of the most intriguing aspects of the data shared thus far is that phosphorylated Rab10 levels were approximately 2x higher in patients with sporadic Parkinson’s (as well as in those with LRRK2 mutations) compared with healthy volunteers. This is another indication of elevated LRRK2 activity in idiopathic PD, which suggests that LRRK2 inhibition could be potentially useful in a wider PD cohort than simply those carrying LRRK2 mutations.
The data supports further clinical investigations, suggesting a once daily oral dosing regime. It will be interesting to see how DNL151 is tolerated over a longer period of treatment time and (of course) whether it can impact the progression of PD.
RECAP #2: LRRK2 inhibition is being clinically tested as a means of slowing the progression of Parkinson’s. Biotech company Denali Therapeutics recently presented safety and tolerability results from Phase I studies evaluating their LRRK2 inhibitor DNL151.
The results indicate that the drug was safe and generally well tolerated over 28 days of treatment, and provide evidence of target engagement demonstrating that DNL151 is lowering levels of LRRK2 activity.
What is Denali planning to do next?
In July of last year, the US FDA cleared an Investigational New Drug (IND) application for DNL151 enabling expansion of the clinical trial program.
And then August, Denali signed an agreement with the pharmaceutical company Biogen to co-develop and co-commercialise DNL151 and other small molecule inhibitors of LRRK2 for Parkinson’s (Click here to read the press release).
To partner up, Biogen made an upfront payment of US$560 million to Denali Therapeutics, and they also took a US$465 million equity position in the company (13.3 million newly issued shares, representing 11.2% of the total shares). In addition, there are potential milestone payments (up to US$1.125 billion), profit sharing and royalties are part of the deal.
Biogen and Denali will share responsibility and costs for global development (60% Biogen; 40% Denali), as well as profits and losses for commercialisation in the U.S. (50% Biogen; 50% Denali) and China (60% Biogen; 40% Denali). Outside of the U.S. and China, Biogen will be responsible for commercialisation and (if all goes well) pay Denali tiered royalties.
Denali and Biogen are now working on finalising plans for two separate Parkinson’s studies:
- One will be assessing DNL151 in patients with a LRRK2 genetic variant that causes hyperactivity of the protein, and
- The second study will involve assessing DNL151 in participants with sporadic Parkinson’s (not associated with any genetic variant).
There are few details at present as to what these trials will look like, but Denali has previously been planning “Phase 2/3 clinical trials” for their LRRK2 inhibitors (Source), so we will hopefully be seeing a large Phase III trial or combination trial that will seamlessly shift from Phase II into a Phase III study.
Enrollment for these trials is expected to commence in 2021. Denali has set up a website (EngageParkinson’s) for anyone seeking to learn more.
Are other companies developing LRRK2 inhibitors as well?
Yes, this area of research is fast becoming rather crowded and very busy.
One pharmaceutical company with a major LRRK2 inhibitor research program is GlaxoSmithKline. They appear to be gearing up for clinical trials, as they have paired up with genotyping company 23andMe to help identify individuals with LRRK2 genetic variants (Click here to read more about this).
Other biotech companies building a LRRK2 inhibitor program include Cerevel Therapeutics.
This is a biotech firm that was started by Bain Capital and the Pharmaceutical company Pfizer (Click here to read more about this). Cerevel has taken on many of the neuroscience treatments that Pfizer was clinically testing until it shut down their neuroscience division in early 2018. In addition to those clinically tested assets, Cerevel have also quietly added ‘LRRK2 inhibitor’ to their preclinical ‘lead development’ area of research (Click here to read more about this).
And then there is of course the Biogen LRRK2 inhibition program.
The one with Denali?
No. The other Biogen LRRK2 inhibition program.
There’s more than one?
One interesting question raised by the collaboration between Biogen and Denali is how it affects the Biogen LRRK2 inhibition program with another biotech company called Ionis Pharmaceuticals, which is developing a novel LRRK2 approach in collaboration with Biogen.
BIIB094 is an antisense oligonucleotide – this is an approach that blocks LRRK2 RNA before it can be used to make LRRK2 protein (we have discussed antisense oligonucleotides in a previous SoPD post – click here to read that post). The trial is a Phase I clinical trial to evaluate the safety and tolerability of single and multiple doses of BIIB094 (Click here to learn more about that trial).
Biogen appears to be doubling down on LRRK2 and placing some major bets that reducing the activity of this protein is the path forward for treating Parkinson’s.
So what does it all mean?
New clinical trial results provide encouraging signs of progress in the field of LRRK2 inhibition as a potential future treatment for certain cases of Parkinson’s. But there is still a long way to go in clinical testing for this therapeutic class and caution must be taken on that journey.
LRRK2 is a complex protein. It has two enzymatic activities and a number of additional functions. Certain genetic mutations in the LRRK2 gene are associated with increased risk of developing Parkinson’s, but not all of these mutations have the same effect on the activity of the subsequent LRRK2 protein. Given the variety of cellular functions associated with LRRK2 and the different approaches being taken to modulate that activity, there could be an increased potential for unintended consequences.
In addition, the future trials of experimental therapies like DNL151 may be difficult clinical studies to conduct, given the slower rate of progress in PD symptoms in LRRK2 mutation carriers (longer studies may be required). And as we discussed in a recent post, reductions in LRRK2 activity in GBA-associated Parkinson’s might not be a good idea – so participants in future studies will need to be carefully genotyped and characterised (Click here to read that SoPD post).
Apologies if I am raining on the parade here, but expectation must be managed. LRRK2 inhibitors represent an exciting new class of possible therapeutics for Parkinson’s, but it is still early days in their development and we have a great deal to learn.
All of that said, we will be keeping a keen eye out for any news about the next steps in the development of DNL151.
