Back to back stimulation

Many members of the Parkinson’s community will have heard of deep brain stimulation – a surgical procedure that is offered to individuals with particularly bad tremor or dyskinesias – but there is now another form of stimulation that is now being tested in people with PD.

Spinal cord stimulation has long been used as a therapy for back pain and research groups have recently been asking if this technique could be applied to Parkinson’s.

In today’s post we will discuss some recently published data that points towards certain aspects of the motor features of Parkinson’s that could benefit from spinal cord stimulation, particularly freezing of gait.


Deep brain stimulation electrodes implanted in the brain. Source: 2ndFriday

Deep brain stimulation (or DBS) has now become a routine treatment option for those in the Parkinson’s community with particularly debilitating motor features (such as severe tremor or dyskinesias).

First introduced in 1987, deep brain stimulation consists of three components: the pulse generator, an extension wire, and the leads (which the electrodes are attached to). All of these components are implanted inside the body. Similar to a pace maker for the heart, the DBS system is turned on, programmed and turned off remotely.

Shahlaie_DBS_Illustration-full

Source: Ucdmc

The electrodes that are implanted deep in the brain are tiny, and the very tip of the electrode has small metal plates (each less than a mm in width) which provide the pulses that will help mediate the activity in the brain.

3387tip

DBS electrode tip. Source: Oxford

Interesting. How does it work?

The electrode extends up into the leads (or extension wire) which continue up and out of the brain, across the top of the skull, down the neck and to the pulse generator which is generally located on the chest.

2-deep-brain-stimulating-electrodes-x-ray-living-art-enterprises

Xray image demonstrating the leads. Source: Fineartamerica

There are many different brands/types of pulse generators, but they all largely do the same basic function. They are titanium packets containing the electronics and power supply for the leads and electrodes. They are implanted in a subcutaneous spot, usually located under the collar bone on the chest. And some of the batteries in these generators now have 25 year life spans.

urn-cambridge

Pulse generators. Source: Cambridge (also a good read on DBS)

The pulse generator is programmable (which the doctor usually does several weeks post surgery). A small hand held device is used to turn on/off the generator, generally by holding the device over it.

urn-cambridge

Remote control. Source: Cambridge

And while all of this is interesting, it is not the topic of today’s post – just the intro. If you would like to read more about DBS and how it affects the brain – click here to read a previous SoPD post on the topic.

So what is today’s post about then?

A different kind of stimulation: Spinal cord stimulation

What is spinal cord stimulation?

Spinal cord stimulation is a form of implantable neuromodulation. Similar to deep brain stimulation, it involves using electrical signals to modulate neural activity. But rather than electrodes being placed into the brain (in the case of DBS), spinal cord stimulation involves – as the label on the can suggests – specific areas of the spinal cord being stimulated. And this has primarily been done in the past for the treatment of certain types of pain.

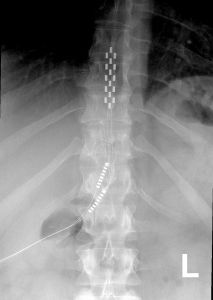

Anterior_thoracic_SCS

An x-ray of the spine with a stimulator implanted (towards the top of the image, and connecting cords leading off to the bottom left). Source: Wikipedia

A spinal cord stimulator involves a small device being used to apply pulsed electrical signals to the spinal cord. It is generally used for pain relief, but it has recently been tested in a variety of other medical conditions.

The device is a column of stimulating electrodes that is surgically implanted in the epidural space of the spine. And before you ask: the epidural space is the area between the outer protective skin of the spinal cord (called the dura mater) and the surrounding vertebrae. So the device lies against the spinal cord, and is protected by the bones that make up the spine (as shown in the image below).

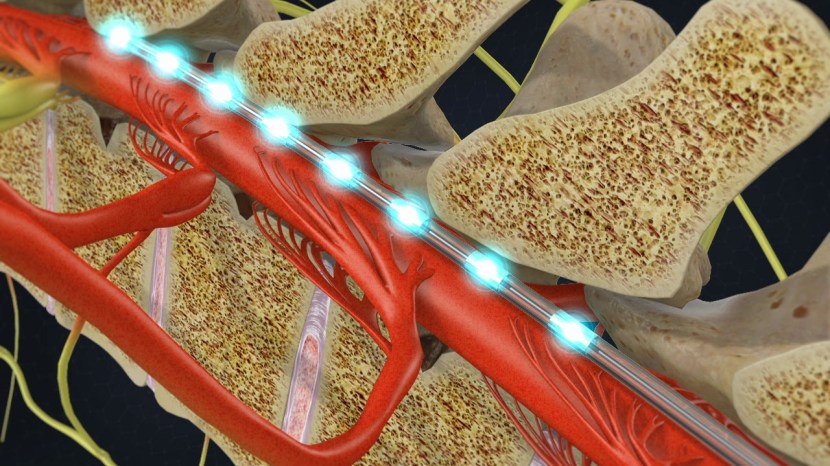

stimimplanttrial_1280

The stimulating electrodes within the epidural space. Source: SpineOne

An electrical pulse generator is implanted in the lower abdomen and conducting wires are connected between the electrodes to the generator. Much like deep brain stimulation, the system is entirely enclosed in the body and operated with a remote control.

How does spinal cord stimulation work?

The stimulation basically interrupts the feeling of pain – blocking it from reaching the brain – substituting it with a more pleasing sensation called paresthesia (a kind of tingling or numbness).

PE-SCS Fig1

Source: MayoClinic

The stimulation does not eliminate the source of pain, it simply masks it by interfering with the signal going to the brain.  As a result the amount of relief from pain varies from person to person. In general, spinal cord stimulation resulting in a 50-70% reduction in pain.

But Parkinson’s results from inability to move, how would spinal cord stimulation work in Parkinson’s?

Yeah, this is a good question and the answer is not entirely clear, but the researchers (behind the research we discuss below) suggest that beneficial effects from spinal cord stimulation in Parkinson’s could be coming from direct activation of ascending pathways reaching thalamic nuclei and the cerebral cortex. That is to say (in plain English): activation of the spinal cord results in a signal going up into the brain where it alters the interaction between two of the regions involved in the initiation of movement (the thalamus and the cortex). And as we shall discuss below, there is evidence backing this idea.

Ok, so how much research has been done on spinal cord stimulation for Parkinson’s?

Actually quite a bit (in fact, for a good early review on the topic – click here).

The first real attempt at spinal cord stimulation for Parkinson’s was this report here:

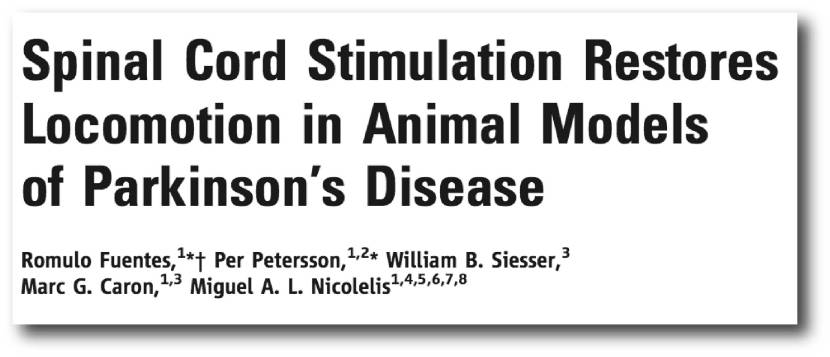

Spinal1

Title: Spinal Cord Stimulation Restores Locomotion in Animal Models of Parkinson’s Disease
Authors: Fuentes, R., Petersson, P., Siesser, W. B., Caron, M. G., & Nicolelis, M. A. L.
Journal: Science (2009) 323(5921), 1578-1582.
PMID: 19299613                   (This article is OPEN ACCESS if you would like to read it)

It was conducted by Prof Miguel Nicolelis and his colleagues at Duke University. Duke were kind enough to make this short video about the research:

In their research report, the scientists injected mice with a drug (the tyrosine hydroxylase inhibitor alpha-methyl-para-tyrosine  or AMPT) which reduced the level of dopamine in the brain. Similar to Parkinson’s, this resulted in a significant reduction in the movements of those mice. It also resulted in changes in the neuronal activity patterns of cells in an area of the brain called the motor cortex (we have talked about the motor cortex in a previous post). When the researchers then conducted spinal cord stimulation on these mice, they found that stimulation corrected both the loss of movement and the altered activity in the motor cortex.

The researchers then tested spinal cord stimulation in rats which had their dopamine system severely depleted (using the neurotoxin 6-OHDA), and they again found that the treatment could rescue the loss of locomotor ability. Curiously, spinal cord stimulation in the rats also caused an increase in locomotion activity after the stimulation period had stopped. On top of this, the researchers found that spinal cord stimulation aided the effect of L-dopa, allowing lower doses of L-dopa to achieve the same behavioural results as higher doses in animals not receiving spinal cord stimulation.

These initial results were then replicated in primates:

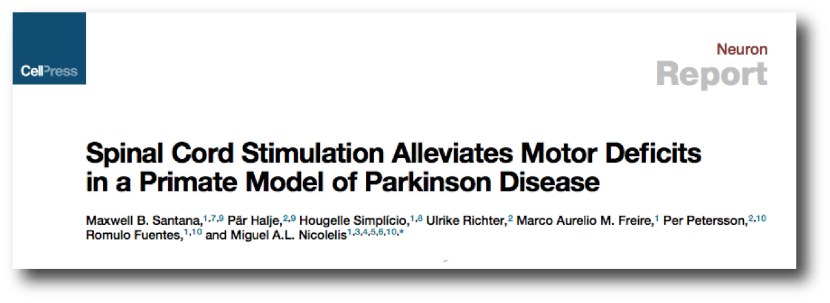

Monkey

Title: Spinal cord stimulation alleviates motor deficits in a primate model of Parkinson disease.
Authors: Santana MB, Halje P, Simplício H, Richter U, Freire MA, Petersson P, Fuentes R, Nicolelis MA.
Journal: Neuron. 2014 Nov 19;84(4):716-22.
PMID: 25447740              (This article is OPEN ACCESS if you would like to read it)

In this study, the researchers modelled Parkinson’s in five adult marmosets using the neurotoxin 6-OHDA, which resulted in a reduction in spontaneous behaviour and a significant loss of dopamine neurons in the brain. They then implanted a spinal cord stimulator in each of the animals, which once activated resulted in a 200% improvement in some aspects of behavioural activity. Improvements observed in Parkinson’s-like features included freezing (31%), posture (23%), and bradykinesia (21%) as assessed by investigators who were blind to the treatment conditions of each subject.

In the brain, the researchers found that spinal cord stimulation resulted in similar improvements in neural activity as that seen with L-dopa treatment. Given all of these results, the investigators concluded that spinal cord stimulation “should be further tested in clinical studies aimed at measuring its long-term efficacy as a less invasive, long-term therapy for” people with Parkinson’s.

And it was not just Prof Nicolelis’ group that has achieved these results. Japanese researchers have also reported spinal cord stimulation having beneficial effects in models of Parkinson’s:

NeuoroProtect

Title: Spinal cord stimulation exerts neuroprotective effects against experimental Parkinson’s disease.
Authors: Shinko A, Agari T, Kameda M, Yasuhara T, Kondo A, Tayra JT, Sato K, Sasaki T, Sasada S, Takeuchi H, Wakamori T, Borlongan CV, Date I.
Journal: PLoS One. 2014 Jul 10;9(7):e101468.
PMID: 25009993           (This article is OPEN ACCESS if you would like to read it)

In this report, the researchers actually found that spinal cord stimulation resulted in neuroprotection in a classical model of Parkinson’s (rodent 6-OHDA striatal delivery). Across three different levels of stimulation, the researchers reported better rescue of motor deficits and protection of dopamine neurons (particularly for 50Hz stimulation). The researchers also provided evidence suggesting that the neuroprotective effect might have something to do with a protein called Vascular endothelial growth factor (or VEGF). Interestingly, they found that the neuroprotective protein GDNF (that we have discussed before – click here for that post) was not involved.

So has this spinal stimulation procedure ever been conducted in humans with Parkinson’s before?

Yes, it has. But the results have been a bit mixed:

Stim1

Title: Spinal cord stimulation failed to relieve akinesia or restore locomotion in Parkinson disease.
Authors: Thevathasan W, Mazzone P, Jha A, Djamshidian A, Dileone M, Di Lazzaro V, Brown P.
Journal: Neurology. 2010 Apr 20;74(16):1325-7.
PMID: 20404313          (This article is OPEN ACCESS if you would like to read it)

In this first, very small clinical study, just two people (both 75+ years of age) with Parkinson’s were fitted with spinal cord stimulators. Ten days after the surgery, the subjects participated in a blind analysis of the motor effects of spinal stimulation (blind analysis meaning that the assessors were not aware of their surgical treatment). The assessors, however, found no improvements as a result of the stimulation treatment.

This report lead to a letter to the journal from Prof Nicolelis and his colleagues:

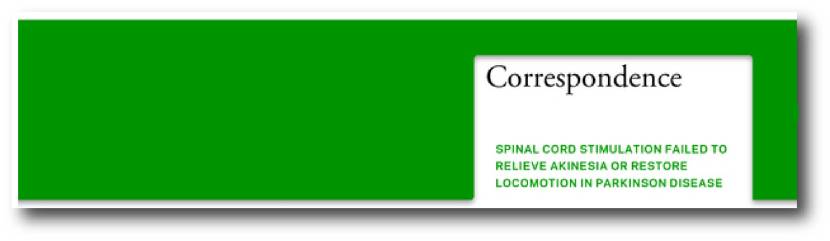

Neurol

In their letter, Prof Nicolelis and co. point out several issues with the clinical study that may impact the final results (such as the tiny size of the study (only two participants) and the fact that the electrodes were located at a high cervical level, while in the rodent study they were located at a high thoracic level). In addition, the commercially available electrodes used in the human clinical study did not match the relative size or orientation of the electrodes used in the rodent study.

The researchers of the clinical study suggested that the beneficial motor effect described in the rodent study may be due to an increase in arousal (as a result of higher stimulation). But Prof Nicolelis and colleagues pointed out in their letter that their rodent study included three control experiments (including air puffs, trigeminal stimulation at the highest intensity tolerated by the animals, and direct measurements of changes in heart rate following spinal stimulation) which did not find a strong connection between arousal response and recovery seen in the level of locomotion.

The letter concluded that the results of the small clinical trial were inconclusive, and that further research in nonhuman primate models of Parkinson’s are required to determine the effects of electrode design and stimulation parameters. The doctors behind the clinical study agreed that more research is required.

This pilot study demonstrated that spinal cord stimulation is safe for people with Parkinson’s, which was supported by several individual case studies (Click here and here for examples). These pilot results led to a larger study of spinal cord stimulation in Parkinson’s which suggested that beneficial effects could be had from this method:

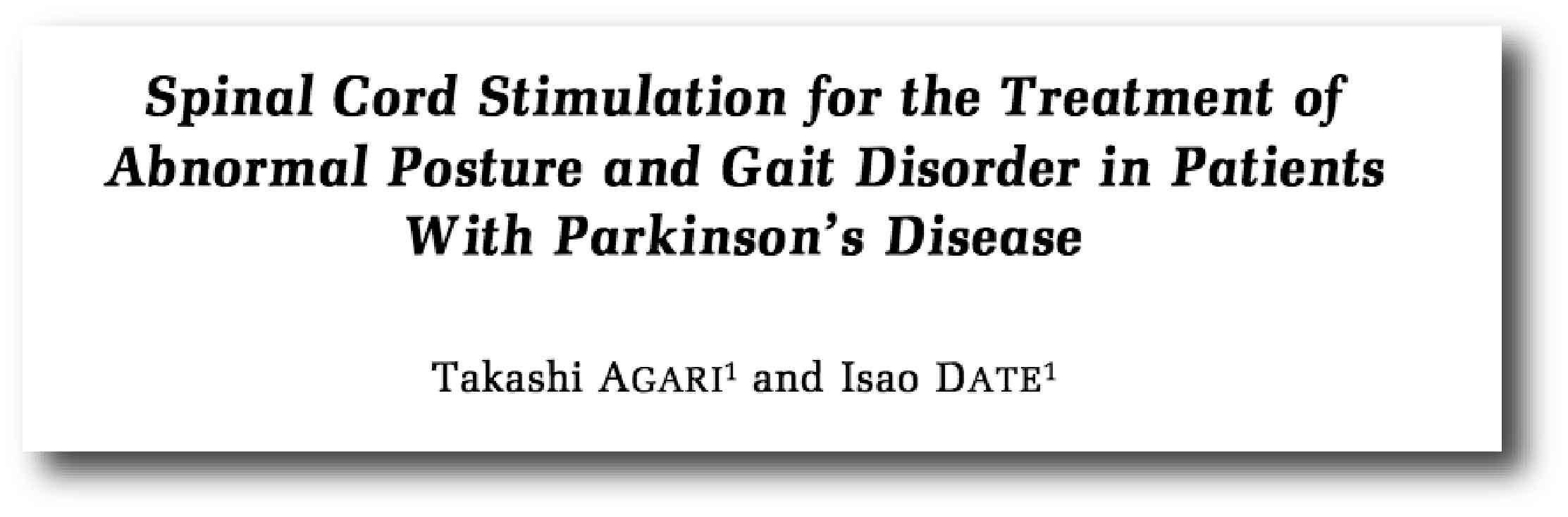

Title: Spinal cord stimulation for the treatment of abnormal posture and gait disorder in patients withParkinson’s disease.
Authors: Agari T, Date I.
Journal: Neurol Med Chir (Tokyo). 2012;52(7):470-4.
PMID: 22850494                   (This article is OPEN ACCESS if you would like to read it)

This study investigated the effect of spinal cord stimulation on posture and gait in 15 people (5 men & 10 women) with Parkinson’s in Japan. The results of the study suggested that both posture was improved at 3 months after surgery, while measures of gait and a timed 10-meter walk tests were found to be significantly improved at both 3 months and 1 year after surgery. The researchers concluded that spinal cord stimulation is expected to lead to both the amelioration of pain (a common feature of advanced PD) and improvement of motor function in folks with Parkinson’s.

Those early clinical studies were followed more recently by a study conducted by a research group in London (Canada) who published this report earlier this year:

Title: Spinal cord stimulation therapy for gait dysfunction in advanced Parkinson’s disease patients.
Authors: Samotus O, Parrent A, Jog M.
Journal: Mov Disord. 2018 Feb 14. [Epub ahead of print]
PMID: 29442369

In this pilot study, five males with Parkinson’s suffering from severe gait disturbances and freezing of gait episodes underwent midthoracic spinal cord stimulation for a 1- to 4-month period.

Thoracic vertebrae. Source: Wikipedia

After the operation, clinic visits were made every two weeks for 3 months. At each visit, the subjects were single-blinded and randomly selected given a stimulation combination. Eleven frequency (30, 60, and 130 Hz) and pulse width (200, 300, 400, and 500 microseconds) stimulation combinations were tested (the device did not allow 500 microseconds/130 Hz to be programmed).

At the end of the week 16 visit, the stimulation settings that produce the best motor response were selected by the objective measurements made by the clinical assessors (using gait analysis measures such as Protokinetics Walkway and Unified Parkinson’s Disease Rating Scale (or UPDRS) motor items) and by the participant subjective assessments (such as Freezing of Gait Questionnaire or FOG-Q).

Protokinetics Walkway. Source: Protokinetics

SIDE NOTE: Related to self monitoring – I really like this form of gait monitoring: a mat that measures all aspects of how one walks and feeds that information to a nearby computer.

At the 6 months visit, the clinical evaluations and the effects of spinal cord stimulation were collected and assessed. The researchers found that spinal cord stimulation setting combinations of 300-400 μs/30-130 Hz provided gait improvements. They reported that the mean step length, stride velocity, and sit-to-stand improved by 38.8%, 42.3%, and 50.3%, respectively. In addition, the mean UPDRS and FOG-Q scores improved by 33.5% and 26.8% respectively.

Rather impressively, when the investigators looked at the mean number of freezing-of-gait episodes, they found a significant reduction from 16 episodes (pre-surgery) to 0 at 6 months post surgery (and this was while participants were on L-dopa and off stimulation).

The researchers openly admit that this pilot study has some flaws in its design. For example, it was open-label and un-blinded, meaning that the participants involved in the study were aware that they were having spinal cord stimulation. Thus the improvements in motor and gait could have been a placebo response.

But they also believe that the results justify a larger phase I/II clinical study which is currently underway in Canada. That study will involve 25 participants who will be given dorsal thoracic spinal cord stimulation (I am curious as to why the location of the stimulation in the spinal cord has been shifted from the mid to the dorsal thoracic region). There will be no masking (blinding) in this study either, as this will just be a further characterisation and safety study (Click here to read more about that trial). The results of that study should be available in late 2020.

So what was the research published this week?

This report was published:

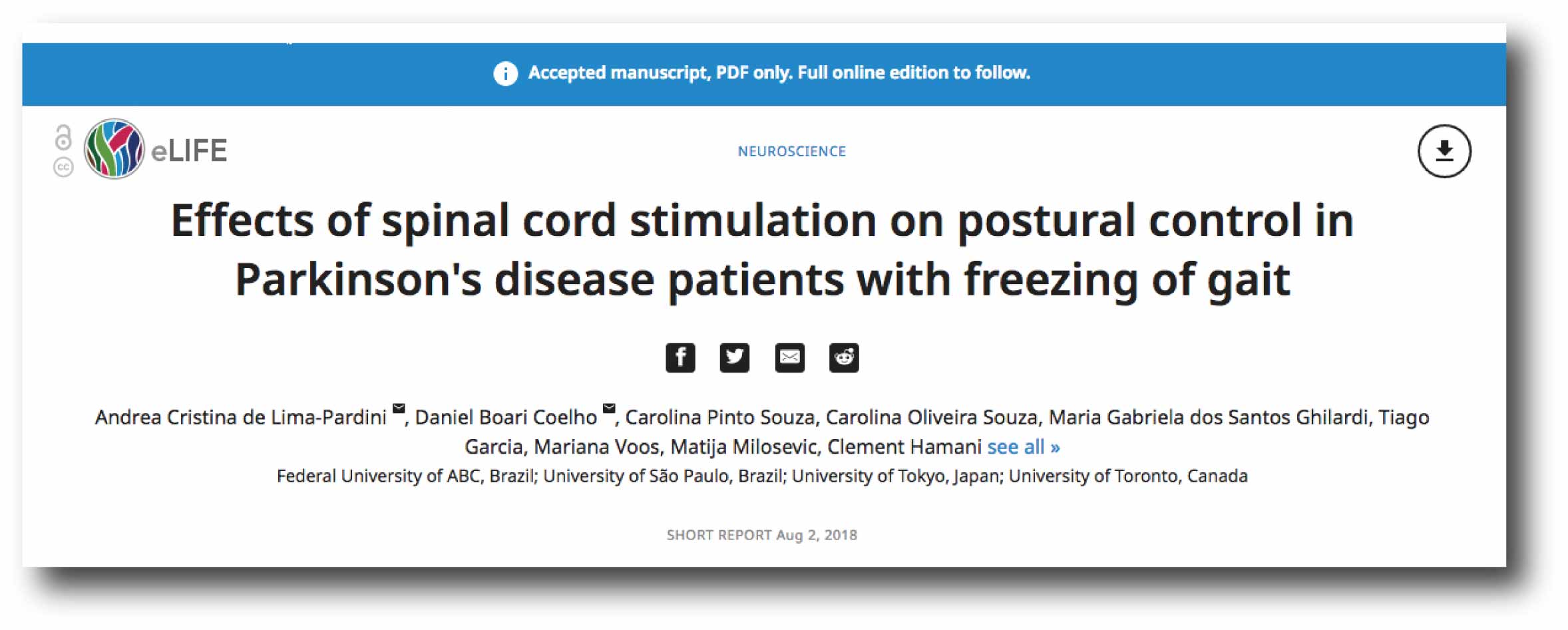

Title: Effects of spinal cord stimulation on postural control in Parkinson’s disease patients with freezing of gait.
Authors: de Lima-Pardini AC, Coelho DB, Souza CP, Souza CO, Ghilardi MGDS, Garcia T, Voos M, Milosevic M, Hamani C, Teixeira LA, Fonoff ET.
Journal: Elife. 2018 Aug 2;7. pii: e37727.
PMID: 30070204                    (This report is OPEN ACCESS if you would like to read it)

This study was an international collaboration between Brazilian and Canadian researchers who desired to assess the effects of spinal cord stimulation on freezing of gait and certain aspects of postural control.

What is freezing of gait?

I have briefly mentioned freezing of gait (or FOG) above, but I didn’t really explain it.

Freezing of gait is a sudden disturbance or interrupting of walking. Specific to the issue is the sudden and transient nature of this debilitating aspect of Parkinson’s. During an episode of FOG, an individual often perceives complete inability to continue with locomotion (which can result in falls).

This video (kindly provided by the medical journal the Lancet) offers examples of an individual suffering from freezing of gait:

The researchers recruited four individuals with Parkinson’s who suffered badly from episodes of freezing of gait. These participants had been previously implanted with a spinal cord stimulation system in the upper thoracic spine as part of another study (Click here to read about the study and click here to read more about the results of that study). Anticipatory postural adjustment (APA), reactive postural responses, gait and FoG were then biomechanically assessed

What are Anticipatory postural adjustment and reactive postural responses?

A necessary aspect of normal walking is an exact coordination of postural adjustment in advance of each step. This is anticipatory postural adjustment. During an episode of FOG, the intention to walk becomes uncoupled from the anticipatory postural adjustment, which results in a failure to move forward. This often shows itself in knee trembling and difficulty initiating a step.

Reactive postural control is simply the ability to recover from a a disruption of stability, and it ultimately determines whether an individual will fall following the freezing of gait or a loss of balance.

The results of the analysis in these four individuals implanted with spinal cord stimulators suggested that spinal cord stimulation improved both freezing of gait and anticipatory postural adjustment, but it failed to improve reactive postural responses. The researchers speculated about whether this difference could tell us something about the biology of movement and the nature of spinal cord stimulation, specifically that freezing of gait may be a cortical-based phenomenon (which benefits from spinal cord stimulation), while reactive posture control relies more on cell populations in the brain stem (which is less affected by spinal cord stimulation). This needs to be further analysed though.

So what does it all mean?

Researchers have been investigating the use of spinal cord stimulation for people with Parkinson’s and they have found that this technology may have benefits for certain aspects of the motor features of the condition.

While there is a mad dash for ‘curative’ treatments for Parkinson’s, it is also very encouraging to see new methods coming through that can provide benefits for very specific aspects of PD. Spinal cord stimulation has previously been used for pain relief, but if this technology can help people suffering from freezing of gait then it should definitely be investigated further.


The banner for today’s post was sourced from Hawthorncenter
