Is there NOP hope for Parkinson’s?

Please do not misread the title of this post!

Compounds targeting the Nociceptin receptor (or NOP) could provide the Parkinson’s community with novel treatment options in the not-too-distant future.

In pre-clinical models of Parkinson’s, compounds designed to block NOP have demonstrated neuroprotective properties, while drugs that stimulate NOP appear to be beneficial in reducing L-dopa induced dyskinesias.

In today’s post we look at exactly what NOP is and what it does, we will review some of the Parkinson’s-based research that have been conducted so far, and we will look at what is happening in the clinic with regards to NOP-based treatments.


4237_20160422175355

Source: LUMS

On the surface of every cell in your body, there are lots of small proteins that are called receptors.

They are numerous and ubiquitous.

And they function act like a ‘light switch’ – allowing for certain biological processes to be initiated or inhibited. All a receptor requires to be activated (or blocked) is a chemical messenger – called a ligand – to come along and bind to it.

An example of a receptor on a cell. Source: Droualb

Each type of receptor has a particular structure, which is specific to certain shaped ligands (the chemical messenger I mentioned above). These ligands are floating around in the extracellular space (the world outside of the cell), having been released (or secreted) by other cells.

And this process represents one of the main methods by which cells communicate with each other.

By binding to a receptor, the ligand can either activate the receptor or alternatively block it. The activator ligands are called agonists, while the blockers are antagonists.

Agonists_and_antagonists

Agonist vs antagonist. Source: Psychonautwiki

Many of the drugs we currently have available in the clinic function in this manner.

For example, with Parkinson’s medications, some people will be taking Pramipexole (‘Mirapex’ and ‘Sifrol’) or Apomorphine (‘Apokyn’) to treat their symptoms. These drugs are Dopamine agonists because they bind to the dopamine receptors, and help with dopamine-mediated functions (dopamine being one of the chemicals that is severely in the Parkinsonian brain). As you can see in the image below the blue dopamine agonists can bypass the dopamine production process (which is reduced in Parkinson’s) and bind directly to the dopamine receptors on the cells that are the intended targets of dopamine.

Source: Bocsci

There are also dopamine antagonists (such as Olanzapine or ‘Zyprexa’) which blocks dopamine receptors. These drugs are not very helpful to Parkinson’s, but dopamine antagonist are commonly prescribed for people with schizophrenia.

Are there other receptors of interest in Parkinson’s?

Yes, there are many.

But today I’d like to focus on just one. It is called NOP

What is NOP?

The nociceptin receptor (or NOP; also known as ORL-1 or the kappa-type 3 opioid receptor) is the target of a small protein ligand called nociceptin/orphanin FQ peptide (or N/OFQ).

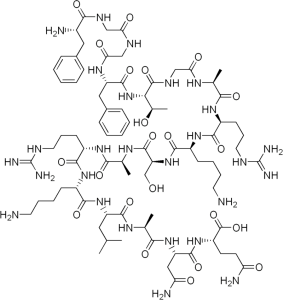

The chemical structure of N/OFQ. Source: Wikipedia

N/OFQ is related to the opioid class of compounds (these are the pain relieving drugs, like morphine), but unlike the other opioid compounds N/OFQ does not act at the classic opioid receptors which typically function as pain relievers. Rather N/OFQ has its own receptor, which I mentioned above: NOP.

By binding to NOP, N/OFQ initiates functions involved in numerous activities, such as pain sensation, fear learning, and the sense of reward (Click here for a good review of everything one could want to know about NOP & N/OFQ).



Does it have anything to do with Parkinson’s?

In 2002, researchers noticed something very interesting about NOP and N/OFQ in the brain:

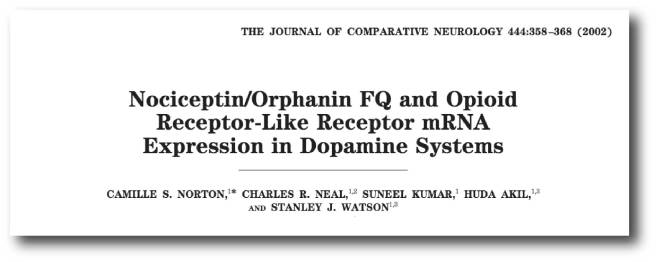

Title: Nociceptin/orphanin FQ and opioid receptor-like receptor mRNA expression in dopamine systems.
Authors: Norton CS, Neal CR, Kumar S, Akil H, Watson SJ.
Journal: J Comp Neurol. 2002 Mar 18;444(4):358-68.
PMID: 11891648                   (This article is OPEN ACCESS if you would like to read it)

In this study, the researchers wanted to look at whether dopamine-producing cells in the brain actually have NOP receptors on them. They already knew from previous research that N/OFQ could influence dopamine-related activity, but they did not know if this was via a direct interaction with the dopamine cells or if it was an indirect influence (via a different cell type). So the investigators took sections of rat brain from the area called the midbrain – where the bulk of the dopamine neurons live – and they went looking for where NOP and N/OFQ are localised.

The researchers found that very few dopamine neurons produce any N/OFQ, but a very high percentage (>50%) of them had NOP. Next, they gave some rats a neurotoxin (6-OHDA) which kills the dopamine neurons, and then looked to see what happened to NOP and N/OFQ levels. NOP levels in the midbrain dropped by 80%.

But the interesting result: N/OFQ levels increased by 300%

This result led other researchers to question whether N/OFQ was beneficial (or not) for dopamine neurons. And in 2005, this research report was published:

nop-1-title

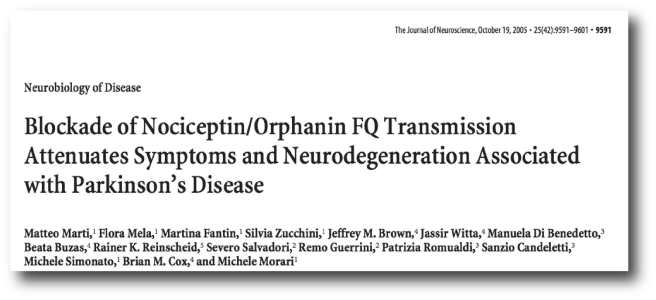

Title: Blockade of nociceptin/orphanin FQ transmission attenuates symptoms and neurodegeneration associated with Parkinson’s disease.
Authors: Marti M, Mela F, Fantin M, Zucchini S, Brown JM, Witta J, Di Benedetto M, Buzas B, Reinscheid RK, Salvadori S, Guerrini R, Romualdi P, Candeletti S, Simonato M, Cox BM, Morari M.
Journal: J Neurosci. 2005 Oct 19;25(42):9591-601.
PMID: 16237164                         (This article is OPEN ACCESS if you would like to read it)

In this study, to determine if N/OFQ is beneficial for dopamine neurons, the researchers firstly treated dopamine neurons with N/OFQ and then recorded the activity of those cells. They found that N/OFQ inhibited the firing of dopamine neurons (by causing them to hyperpolarize). This caused a reduction in the amount of dopamine being released from these cells.

Next, the investigators treated rodents with a NOP receptor antagonist (so this would block the receptor), called UFP-101, and they found that this caused an increase in dopamine release. Another NOP receptor antagonist J-113397 had the same effect, confirming that this effect was caused by blocking normal N/OFQ signalling.

When rodents were treated with N/OFQ, it caused behavioural impairments – the animals had trouble on movement related tests. And this inhibitory role of N/OFQ on motor activity was further strengthened by the observation that mice that have been genetically engineered to produce no NOP receptor outperformed normal mice on the tests of motor behaviour.

These results led the researchers to conclude that N/OFQ may contribute to inhibitory state observed in Parkinson’s – an increase in N/OFQ levels as dopamine neurons are being lost, would result in more inhibited movement. And in a follow up study, these same researchers found that N/OFQ levels were approximately 3.5x higher in the cerebrospinal fluid of people with Parkinson’s than normal control subjects (Click here to read the abstract of that follow up study).

These and other results (Click here to see that report) led the researchers to next test whether N/OFQ or NOP receptor agonists could be useful in reducing some of the nasty side effects of prolonged L-dopa treatment:

nop-2-title
Title: Nociceptin/orphanin FQ receptor agonists attenuate L-DOPA-induced dyskinesias.
Authors: Marti M, Rodi D, Li Q, Guerrini R, Fasano S, Morella I, Tozzi A, Brambilla R, Calabresi P, Simonato M, Bezard E, Morari M.
Journal: J Neurosci. 2012 Nov 14;32(46):16106-19
PMID: 23152595       (This article is OPEN ACCESS if you would like to read it)

In this study, the same researchers wanted to determine what effect N/OFQ (or a synthetic N/OFQ receptor agonist) could reduce L-dopa induced dyskinesias in an animal model of Parkinson’s.

What are L-dopa-induced dyskinesias?

Dyskinesias (from Greek: dys – “abnormal”; and kinēsis – “motion, movement”) are simply a category of movement disorders that are characterised by involuntary muscle movements. And they are certainly not specific to Parkinson’s.

In Parkinson’s, dyskinesias are associated with the long-term use of L-dopa (also known as Sinemet or Madopar) treatment.

7001127301-6010801

Sinemet is Levodopa. Source: Drugs

How do dyskinesias develop in Parkinson’s?

L-dopa (or Levodopa) tablets provide the brain with the precursor to the chemical dopamine. Dopamine producing cells are lost in Parkinson’s, so replacing the missing dopamine is one way to treat the motor features of the condition. Simply giving people pills of dopamine is a non-starter: dopamine is unstable, breaks down too quickly, and (strangely) has a very hard time getting into the brain (it is blocked by the protective layer called the blood-brain-barrier). L-dopa, on the other hand, is very robust and has no problem entering the brain.

Once inside the brain, L-dopa is quickly converted into dopamine. It is changed into dopamine by an enzyme called DOPA decarboxylase which is present in many different cells in the brain. And this conversion rapidly increases the levels of dopamine in the brain, allowing the locomotion parts of the brain to function more normally.

4INJ4aV

The chemical conversion of L-dopa to dopamine. Source: Nootrobox

In understanding this process, it is important to appreciate that when an L-dopa tablet is consumed and L-dopa enters the brain, there is a rapid increase in the levels of dopamine. This ‘spike’ in the supply of dopamine will last for the next few hours, before the dopamine is eventually used up.

As the effects of the L-dopa tablet wear off, another tablet will be required. This use of multiple L-dopa pills across the day gives rise to a wave-like shape to the dopamine levels in the brain over the course of the day (see the figure below).

The first pill in the morning will quickly lift the levels of dopamine enough so that the individual will no longer feel inhibited or akinetic (akinesia is a state of being unable to move). This will allow them to be able to function with normal controlled movement for several hours before the L-dopa begins to wear off. As the L-dopa wears off, the dopamine levels in the brain drop back towards levels that will leave the person feeling inhibited and at this point another L-dopa tablet is required.

Dysk1

After several years of L-dopa use, many people with Parkinson’s will experience a weaker response to each tablet. They will also find that they have more time during which they will be unable to move (exhibiting akinesia). This is simply the result of the progression of Parkinson’s – L-dopa treats the motor features of the condition, but only hides/masks the fact that the disease is still progressing. In the image below, you can see the dark grey area slowly increasing in size – which represents the progression of the condition.

To combat this shorter response time, the dose of L-dopa is increased. This will result in increasing levels of dopamine in the brain (as illustrated by the higher wave form over time in the image below). It will take more L-dopa medication induced dopamine to lift the individual out of the akinetic state.

Dyskinesias3

This increasing of L-dopa dosage, however, is often associated with the gradual development of abnormal involuntary movements that appear when the levels of L-dopa induced dopamine are the highest.

These are the dyskinesias.

And it should be noted here that each individual has a different response to L-dopa and it is currently impossible to predict when (or even if) someone will develop dyskinesias (the time frame provided on the image above is purely an example). In some cases dyskinesias can take decades to appear.

Ok, so what did the N/OFQ researchers do next?

The researchers gave N/OFQ (or a synthetic N/OFQ receptor agonist called Ro 65–6570) to a rat model of Parkinson’s. The rats had been treated with high levels of the standard Parkinson’s medication (L-dopa), and the investigators found that N/OFQ (and the N/OFQ receptor agonist) reduced L-dopa induced dyskinesias in these animals, without causing hypo-locomotive (or a reduction in movement ability) effects.

They next conducted the opposite experiment and found that treating these animals with NOP receptor antagonists (which you will recall from above, increase dopamine release) worsened the L-dopa-induced dyskinesias.

The researchers then turned their attention to primate models of Parkinson’s (MPTP) with L-dopa-induced dyskinesias, and they found that systemic treatment with the N/OFQ receptor synthetic agonist also reduced dyskinesias in these animals, without affecting the therapeutic effects of L-dopa on movement range, rigidity, and tremor (the treatment also improved posture).

This result led the investigators to conclude that “N/OFQ receptor agonists may represent a novel strategy to counteract L-dopa-induced dyskinesias”. And the researchers are obviously seeking to do something clinical with these results because their more recent research report involved comparing different clinical grade N/OFQ receptor agonists:

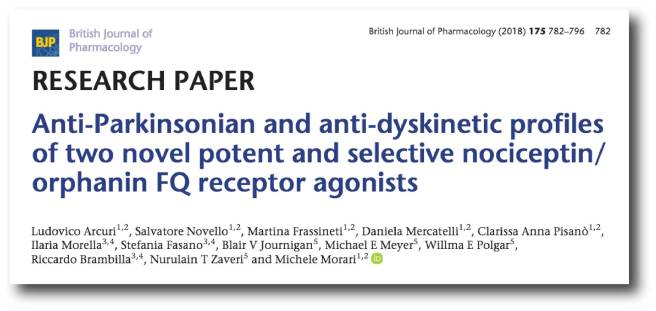

Title: Anti-Parkinsonian and anti-dyskinetic profiles of two novel potent and selective nociceptin/orphanin FQ receptor agonists.
Authors: Arcuri L, Novello S, Frassineti M, Mercatelli D, Pisanò CA, Morella I, Fasano S, Journigan BV, Meyer ME, Polgar WE, Brambilla R, Zaveri NT, Morari M.
Journal: Br J Pharmacol. 2018 Mar;175(5):782-796.
PMID: 29232769

In this very recent study, the researchers wanted to investigate the efficacy of two novel, potent (and chemically distinct) NOP receptor agonists (AT-390 and AT-403), in their ability to improve the motor features of Parkinson’s and reduce dyskinesias. These two drugs are owned by a biotech company called Astraea therapeutics – which is “a discovery-stage biopharmaceutical company, focused on the discovery and preclinical development of small-molecule therapeutics for the treatment of drug addiction and central nervous system disorders“.

Source: AstraeaTherapeutics

In rodent models of L-dopa-induced dyskinesias, the researchers found that only AT-403 reduced dyskinesias without causing sedation, so they next sought to determine if co-treatment of AT-403 with L-dopa could slow the development of dyskinesias. Overall, AT‐403 did not protection against dyskinesias, but the AT‐403‐treated rats did demonstrate a tendency to be less dyskinetic than controls throughout the study. And this resulted in better results in the motor behaviour tests.

The investigators concluded that while NOP receptor agonists hold great promise with dyskinesias, “further studies are needed to pin down the neurobiological substrates of the anti‐dyskinetic and sedative and hypo‐locomotive effects in order to develop NOP receptor agonists”.

Expect to see more research regarding the use of NOP receptor agonists to control dyskinesias in the near future.

Interesting. So are drugs targeting NOP receptor only focused on treating dyskinesias?

No, not at all.

There has been other research pointing towards additional therapeutic opportunities. Such as:

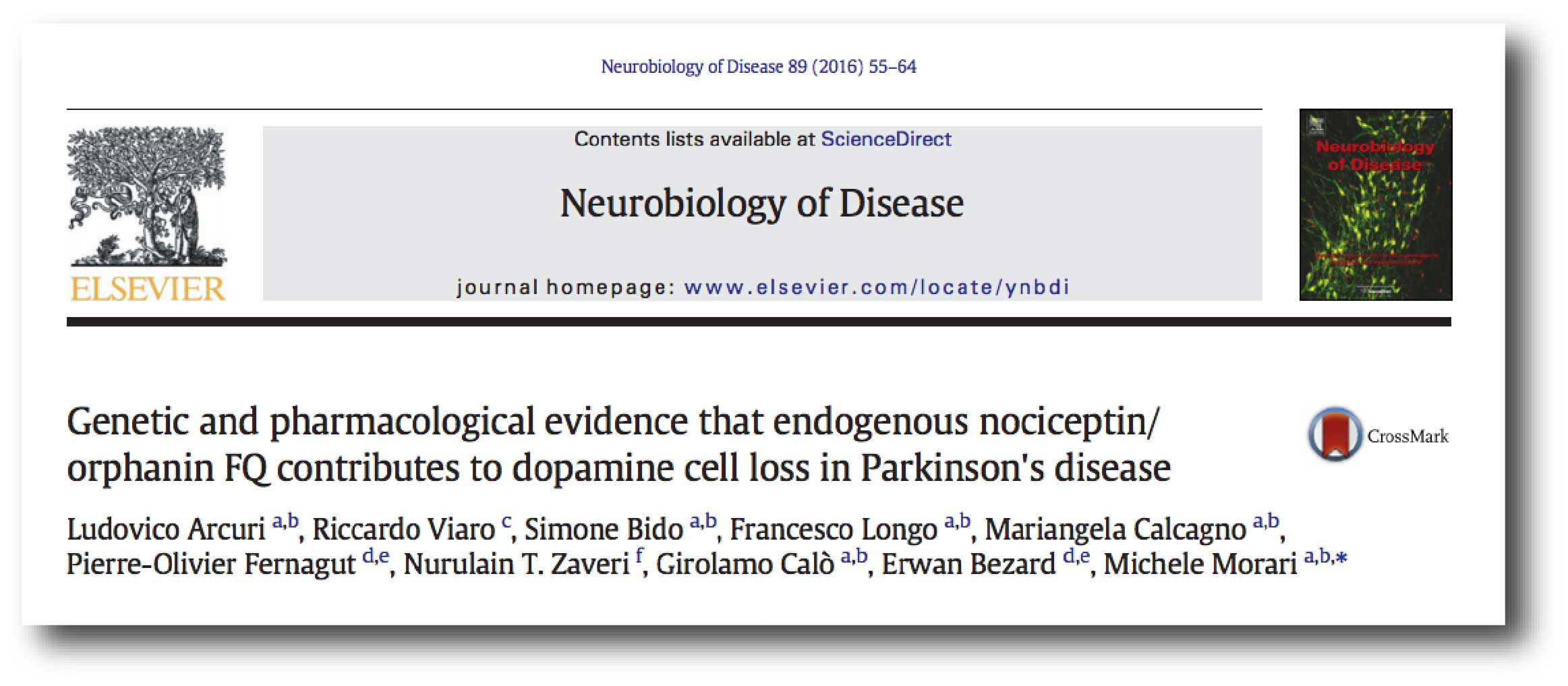

Title: Genetic and pharmacological evidence that endogenous nociceptin/orphanin FQ contributes to dopamine cell loss in Parkinson’s disease.
Authors: Arcuri L, Viaro R, Bido S, Longo F, Calcagno M, Fernagut PO, Zaveri NT, Calò G, Bezard E, Morari M.
Journal: Neurobiol Dis. 2016 May;89:55-64.
PMID: 26804029                   (This article is OPEN ACCESS if you would like to read it)

The researchers who conducted this study injected two groups of mice (normal mice and genetically engineered mice with no NOP receptor) with a neurotoxin used to model Parkinson’s (MPTP), and they found that the mice without NOP receptor had significantly less dopamine cell death (40% loss) when compared to the normal control mice (75% loss).

They also found that a NOP receptor antagonist (SB-612111) reduced the MPTP-induced neurodegeneration in mice. Remember that a NOP receptor antagonist blocks the receptor from being able to do its job. Normal mice were given the neurotoxin and then 4 days later the investigators started treating half of those mice twice daily treatment with SB-612111. The NOP receptor antagonist almost completely prevented the loss of dopamine neurons. This delayed treatment approach is more disease-relevant, thus making these results more interesting.

Next the investigators wanted to demonstrate the neuroprotective potential of NOP receptor antagonists in a more disease-relevant model of Parkinson’s. They injected viruses containing a mutated form of human alpha synuclein (p.A53T) into the substantia nigra of rodents. They then started treating the animals with SB-612111 twice daily for 8 weeks (starting from one week after the virus was injected). At the end of this treatment regime, the number of dopamine neurons spared was significantly greater in SB-612111-treated rats (50%) when compared to the placebo-treated controls (25%). Interestingly, the SB-612111 treatment did not affect the total amount of alpha synuclein in the dopamine neurons, so this neuroprotective effect was not due to reducing level of alpha synuclein.

These results led the researchers to conclude that “NOP receptor antagonists might prove effective as disease-modifying agents in Parkinson’s disease, through the rescue of degenerating nigral dopamine neurons and/or the protection of the healthy ones“.

And other research supports the idea of NOP receptor antagonists providing neuroprotective benefits, even during the development of dopamine neurons:

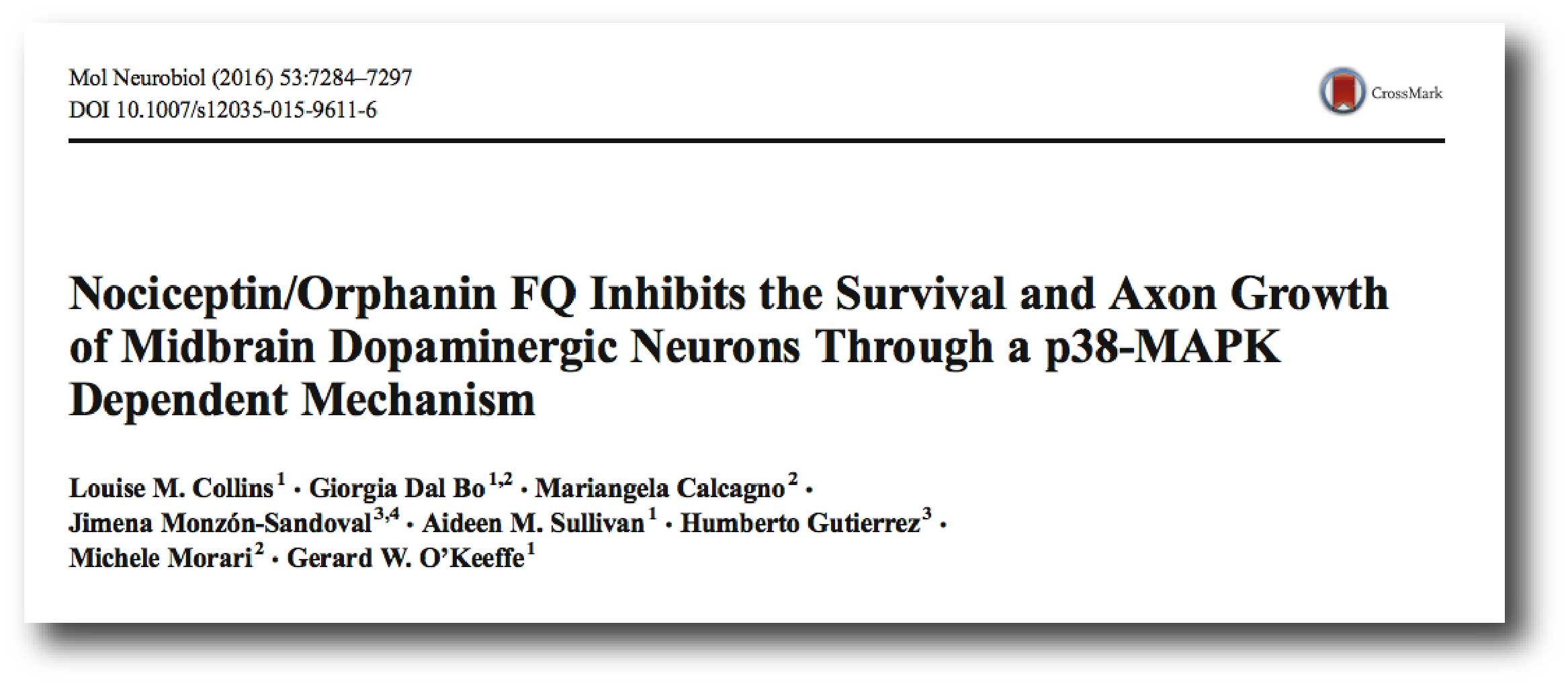

Title: Nociceptin/Orphanin FQ Inhibits the Survival and Axon Growth of Midbrain Dopaminergic Neurons Through a p38-MAPK Dependent Mechanism
Authors:  Collins LM, Dal Bo G, Calcagno M, Monzón-Sandoval J, Sullivan AM, Gutierrez H, Morari M, O’Keeffe GW.
Journal: Mol Neurobiol. 2016 Dec;53(10):7284-7297.
PMID: 26687234

In this study, the researchers found that N/OFQ had a detrimental effect on the development and survival of dopamine neurons grown in culture. The growth of the neuron’s branches (called axons) was significantly reduced due to N/OFQ treatment. N/OFQ treatment also exaggerated the effects of neurotoxins (6-hydroxydopamine and MPTP) on human dopamine neurons grown in cell culture. And again the investigators concluded that these results “support the theory that NOP receptor antagonists may represent a novel class of neuroprotective therapy for” Parkinson’s.

So are there any NOP receptor antagonists in the clinic?

Yes there are. And one company in particular is being watched very closely here at the SoPD:

Source: Blackthornrx

San Francisco-based biotech firm Blackthorn therapeutics is currently conducting a randomised, double-blind, placebo-controlled, Phase II clinical trial of their main candidate BTRX-246040 – a NOP receptor antagonist. This trial will involve a parallel-group efficacy and safety study of BTRX-246040 as it is administered once daily in people with major depression (Click here to read more about the clinical trial)

BTRX-246040 (originally called LY-2940094) was developed by the pharmaceutical company Eli Lilly. Blackthorn therapeutics has licensed the drug from Lilly. BTRX-246040 has been tested in humans and found to be safe:

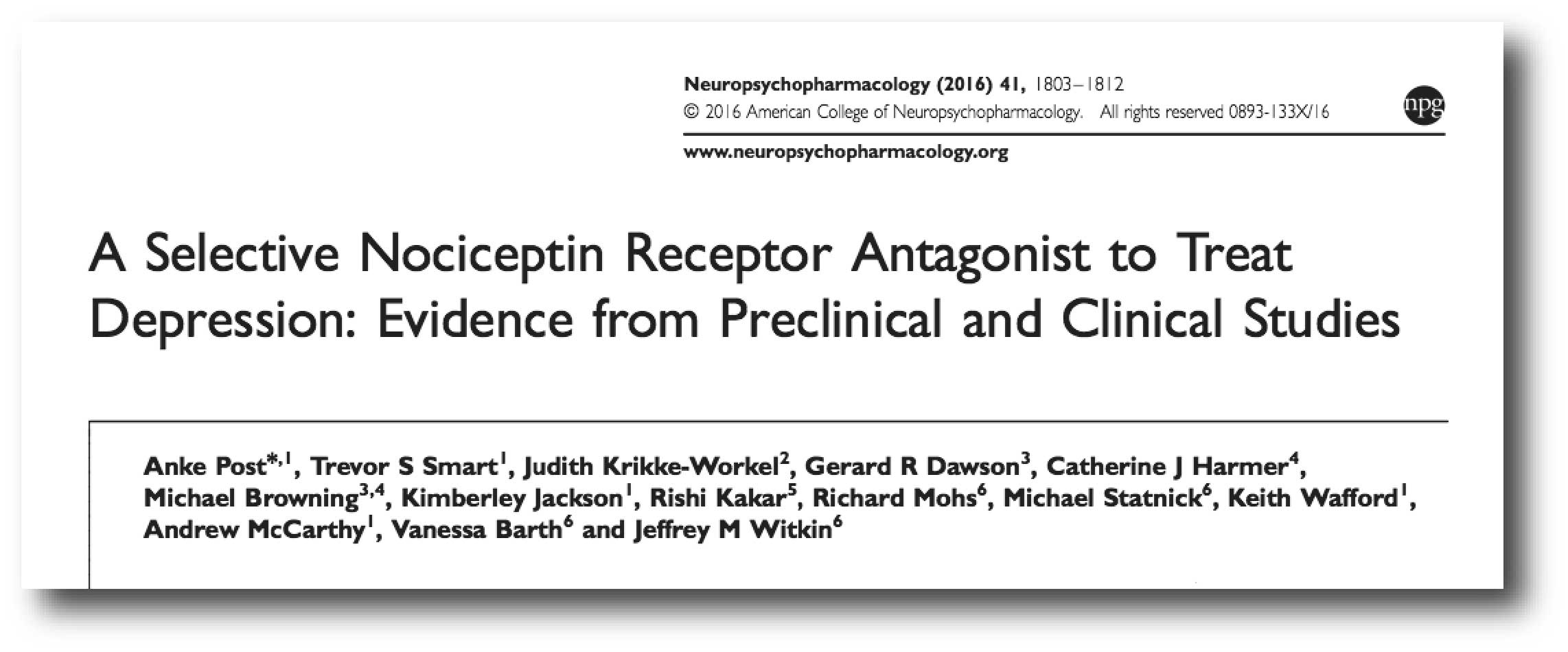

Title: A Selective Nociceptin Receptor Antagonist to Treat Depression: Evidence from Preclinical and Clinical Studies.
Authors: Post A, Smart TS, Krikke-Workel J, Dawson GR, Harmer CJ, Browning M, Jackson K, Kakar R, Mohs R, Statnick M, Wafford K, McCarthy A, Barth V, Witkin JM.
Journal: Neuropsychopharmacology. 2016 Jun;41(7):1803-12.
PMID: 26585287                   (This article is OPEN ACCESS if you would like to read it)

This was a proof-of-concept, double-blind, placebo controlled study that evaluated BTRX-246040/LY2940094 in people with major depression. Once daily oral dosing of the drug for 8 weeks found that BTRX-246040 was well tolerated and provided some evidence for an antidepressant effect (the study was too small to demonstrate anything statistically significant; Click here to read more about this clinical trial and click here to read about a separate safety trial in healthy individuals).

Interesting. So summing up, what does it all mean?

What? No wait.

We haven’t got to the really interesting part yet!

In December 2017, Blackthorn therapeutics released a press statement:

In that statement, the company indicated that they had tested BTRX-246040 in preclinical models of Parkinson’s (including primates), and:

“These preclinical data support our rationale for advancing BTRX-246040 into the clinic in Parkinson’s disease, where NOPR antagonism may improve both the motor and depression symptoms associated with that disease,” said Annette Madrid, M.D., chief medical officer of BlackThorn Therapeutics. ”We plan to initiate a Phase 2a clinical trial in Parkinson’s disease in 2018.” – Click here to read the full press release.

The results of these preclinical results have not been published, but in their statement Blackthorn therapeutics suggest:

“Results showed that BTRX-246040 significantly improved motor symptoms and increased “good ON time” scores (defined as improving Parkinson’s disease symptoms without troublesome dyskinesia) compared with L-DOPA therapy”

It should be noted that Blackthorn therapeutics is backed by biotech investors Johnson & Johnson Innovation and Arch Venture Partners (among others). Arch is a backer of another exciting Parkinson’s-related biotech firm called Denali Therapeutics (which we have previously discussed here at the SoPD – Click here to read that post).

So, hopefully, there will very shortly be news regarding clinical testing of BTRX-246040 in Parkinson’s.

What does it all mean?

This is a post I have been wanting to write for a while.

An important part of this website is to bring to the reader’s attention new or little recognised pieces of research that could have a major impact on not only how we treat Parkinson’s, but also on how we could potentially slow down the progress of the condition.

Drugs targeting NOP and N/OFQ could provide options on both of these counts. Manipulations on this receptor/ligand pairing have demonstrated the ability in pre-clinical models of Parkinson’s to influence both dyskinesias and neuroprotection (using agonists and antagonists, respectively). And the positive news in this case is that there are candidate drugs being tested in clinical trials, and the companies associated with those compounds are eyeing up Parkinson’s as an additional potential opportunity.

Thus, there is reason for NOP… sorry, I meant hope.


The banner for today’s post was sourced from Wikipedia
